前言 & 简要介绍
我为什么突然要搞一个内网穿透呢,因为oracle有一个免费的机器,放着也没用,不如整一个frp做内网穿透好了。
什么是内网穿透,简单来说就是你家里有一个服务器,开放了一些服务想要给外面的人用。但是你没有公网ip,所以外面访问不了。
这个时候,就需要内网穿透。通过一个有公网地址的服务器,把流量转发过来。
接下来就是我如何配置内网穿透的过程了。
我的配置
首先你得有一个具有公网ip的服务器,一个域名(如果你没有http的流量需要转发的话就不需要)。公网的服务器用来安装frp
的服务器端,一个域名用来对不同的web服务进行转发。
frp
的代码开源在githubfrp,文档在文档。最基本的安装教程以及配置都可以在这两个链接中找到。
服务器设置(服务端)
安装&配置 frps
首先在Github的Release页面中下载对应操作系统架构的可执行文件,然后解压
1 2 3
| wget https://github.com/fatedier/frp/releases/download/v0.44.0/frp_0.44.0_linux_amd64.tar.gz
tar -zxvf frp_0.44.0_linux_amd64.tar.gz
|
打开fprs.ini
,记住是fprs.ini
修改内容为
1 2 3 4 5 6 7 8 9 10 11
| [common] bind_port = 7000 # 这个是服务器的端口 token=your_token # 改成你自己的token,随便取
dashboard_port = 7500 # 这个是管理界面的端口 dashboard_user = aynakeya # 这个是管理界面的账号 dashboard_pwd = your_password # 这个是管理界面的密码 enable_prometheus = true # 这个是开始管理界面
subdomain_host = aa.xxxx.com # 这个是http服务的自定义二级域名 vhost_http_port = 80 # 这个是http服务的端口,如果不需要转发http就不用写
|
关于自定义二级域名的跟多信息可以看自定义二级域名
将frps注册为系统服务并启动
创建frps.service
文件
在/etc/systemd/system/frps.service
中填上
1 2 3 4 5 6 7 8 9 10 11 12 13
| [Unit] # 服务名称,可自定义 Description = frp server After = network.target syslog.target Wants = network.target
[Service] Type = simple # 启动frps的命令,需修改为frps的安装路径 ExecStart = /home/ubuntu/repo/frp/frps -c /home/ubuntu/repo/frp/frps.ini
[Install] WantedBy = multi-user.target
|
然后启动并查看服务状态
1 2
| sudo systemctl start frps.service sudo systemctl status frps.service
|
打开允许程序通过服务器防火墙
这里以Oracle VM作为例子
打开Oracle VM Ubuntu系统instance的防火墙 reference
1 2 3 4
| sudo iptables -P INPUT ACCEPT sudo iptables -P OUTPUT ACCEPT sudo iptables -P FORWARD ACCEPT sudo iptables -F
|
找到Instance -> subnet -> security list -> 选一个security list
在security list中添加规则 Ingress Rule,把管理端口,程序端口,以及你要映射的端口都加上
客户端设置 frpc
安装&配置 frpc
同样在Github的Release页面中下载对应操作系统架构的可执行文件,然后解压
1 2 3
| wget https://github.com/fatedier/frp/releases/download/v0.44.0/frp_0.44.0_linux_amd64.tar.gz
tar -zxvf frp_0.44.0_linux_amd64.tar.gz
|
打开fprc.ini
,这次是fprc.ini
填入如下内容,更多功能可以参考frp功能
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
| [common] server_addr = x.x.x.x # 服务器的地址 server_port = 7000 token=your_token # 在服务器设置里填的token
[frontpage] type = http local_ip = 127.0.0.1 # 本地的地址 local_port = 80 # 本地的端口 custom_domains = aa.xxxx.com # 用aa.xxxx.com访问
[calibre] type = http local_ip = 127.0.0.1 local_port = 8020 # 用calibre.<subdomain_host> 也就是 用calibre.aa.xxxx.com subdomain = calibre
[jellyfin] type = http local_ip = 127.0.0.1 local_port = 8030 subdomain = jellyfin
[aria2web] type = http local_ip = 127.0.0.1 local_port = 6801 subdomain = aria2web
|
将frpc注册为系统服务并启动
创建frpc.service
文件
在/etc/systemd/user/frps.service
中填上
1 2 3 4 5 6 7 8 9 10 11
| [Unit] Description = frp client After = network.target syslog.target Wants = network.target
[Service] Type = simple ExecStart = /home/aynakeya/repo/frp/frpc -c /home/aynakeya/repo/frp/frpc.ini
[Install] WantedBy = multi-user.target
|
启动并检查
1 2
| systemctl --user start frpc.service systemctl --user status frpc.service
|
域名设置

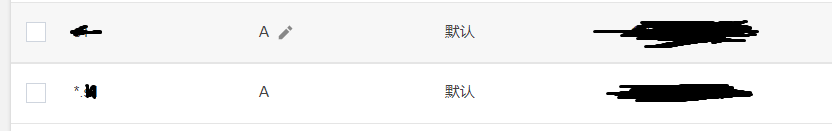

打开dns记录,添加上两个记录,一个是次级域名的解析,一个是次级域名的次级域名的解析.
比如在这里就是aa.xxxx.com
和*.aa.xxxx.com
完成
然后你就可以从外网访问你的内部服务器啦
效果展示
这个就不放了,效果和内网访问一样的。
